Automatic Shrink Wrappers and L Sealer
At Kempner, we offer a number of machines in our fully automatic shrink wrapping machine range that are suitable for different packs, as well as different volume requirements. These are both Automatic L Sealers, and for even faster throughput, Side Sealers. Our automatic L Sealer machine range can be supplied either as single body machines, where the L Sealer and Shrink tunnel are incorporated within the same frame, or as separate units. In these cases, we can also supply standalone Shrink Tunnels to our customers.
Accordingly, we offer a series of shrink tunnels within our fully automatic shrink wrapping machine ranges that are compatible with all of our wrapping machinery. They are suitable for all production line speeds, from the simplest manual shrink wrapping machines, through to high speed flow wrappers and continuous motion side sealers.
Our policy regarding shrink tunnel development is to offer shrink tunnels that are capable of matching any end user requirement. This enables all our customers to access our extensive and quality automatic shrink wrap machine range.
If you would like specific guidance about our automatic shrink wrap machine range, we would recommend that you speak to a member of our experienced team. This means that we can ensure that any shrink tunnel or automatic shrink wrap machine has been correctly selected and you will be able to use the fully automatic shrink wrapping machine to the best of its ability. Please contact us for further information about shrink tunnels and packaging machines.
Automatic Shrink Wrapping

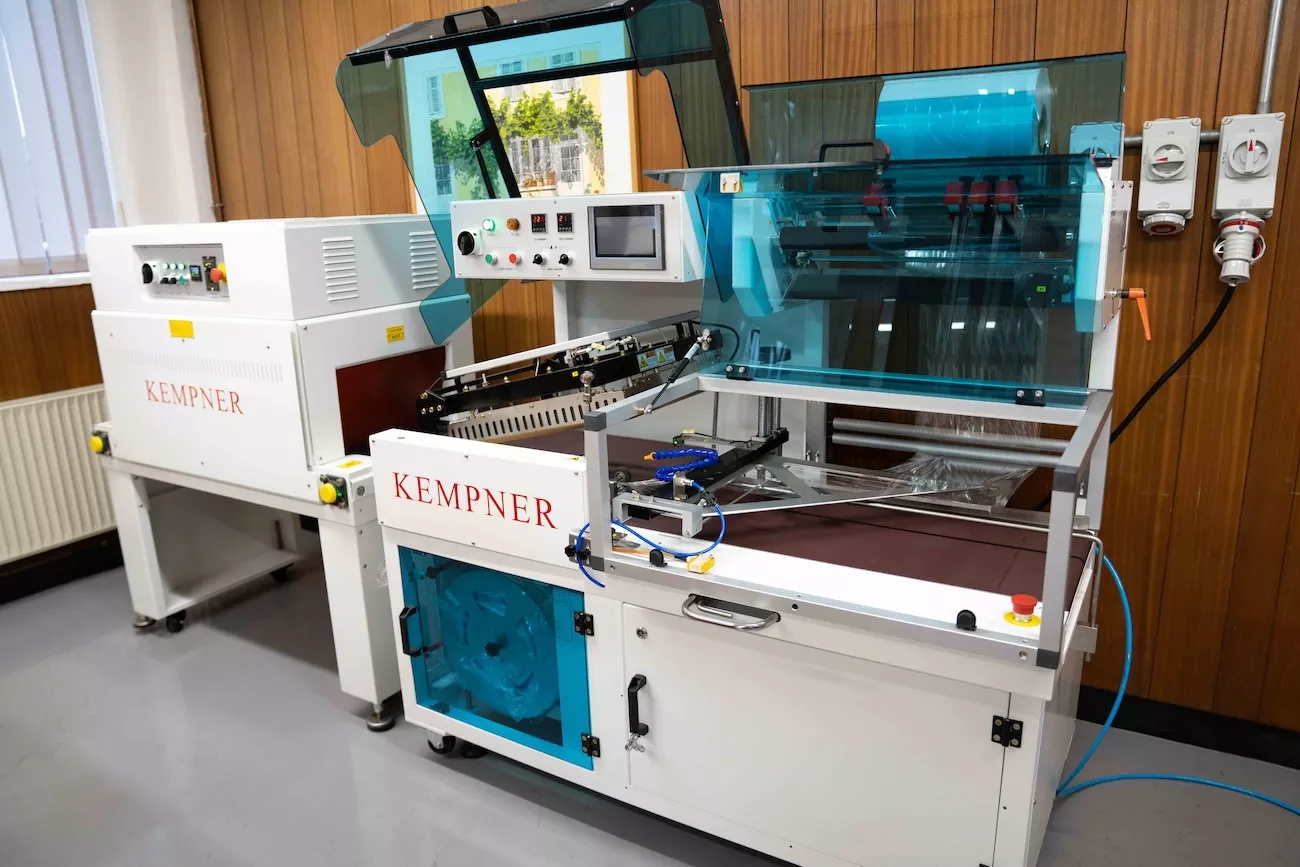

Combined Automatic L Sealer Machine and Tunnels
The combined automatic l sealer machine has the following features:
- Mono-block machines where sealer and tunnel are mounted on a single chassis – with a single power supply and a small foot print.
- Fitted with casters to aid moving the machine to different productivity centres.
LA5000T – 450mm x 410mm plan sealing dimensions
LA6000T – 610mm x 480mm plan sealing dimensions and fitted with centre seal as standard.
Automatic L Sealer Machine and Shrink Tunnel Control Options
H3: Automatic L Sealer Machine Range
LA6000CS – 610mm x 480mm plan sealing dimensions
LA8000CS – 860mm x 670mm plan sealing dimensions
All machines within our Automatic L Sealer machine range, including our Combined Automatic L Sealer and Tunnel shrink wrapping machine, have the following features:
- Radius seal blade join – when the seal is made there is no cut into the waste film minimising the scrap required and hence reducing your on-going film costs.
- The shrink wrap film is advanced simultaneously with the scrap wind up – minimising the scrap required and allowing light weight products to be wrapped easily.
- Multi-pack function – allows multiple packs and packs that would normally trigger the photocell prematurely to be run without problems.
- Fitted with kissing conveyors to ease the transfer of product from infeed to outfeed conveyors.
- Fitted with Centre seal function as standard – centring the seal to the height of the pack, minimising the amount of film used and allowing higher packs to be wrapped.
- Each seal bar has independent temperature control.
- Low level shrink wrap film position for easy loading of film rolls.
- Fitted with adjustable perforation devices
- Fitted with touch screen display to control machine functions.
Automatic Side Sealers
APSS 5022 – 500mm wide seal
APSS 7522 – 750mm wide seal
APSS 10022 – 1000mm wide seal
Our Automatic Side Sealers have the following features:
- Machine frame manufactured in Aluminium and painted steel construction
- Infeed with conveyor belt in line with machine direction
- Infeed and outfeed conveyor belts have maximum speed of approx. 35 metres/minute
- Product detection by horizontal or vertical photocell
- Longitudinal continuous seal via permanently heated sealing blade
- Waste shrink wrap film spooled up by wind up mechanism with film break control
- Selection switch for right-handed/left-handed wound film
- Maintenance free side sealing system, permanently heated, with integrated blade
- Retractable infeed conveyor belt for ease of film threading
- Adjustable cross seal and side seal height
- Inverting triangle fully adjustable
- PLC machine control and Touch Screen control system fitted as standard
- 20 different program settings can be stored for different pack setups
If you would like to find out about any of our fully automatic shrink wrapping machine range, don’t hesitate to contact our team, today.
Feeding the Shrink Wrap Film into Automatic Shrink Wrapping Machines
Putting the Shrink Wrap Film underneath the Gripper Roller in an Automatic Shrink Wrapping Machine
Putting the Shrink Wrap Film in place ready for automatic Shrink Wrapping Machines
As we continue to work to improve our range of wrapping machinery please note that we may vary any stated specifications without notice.
